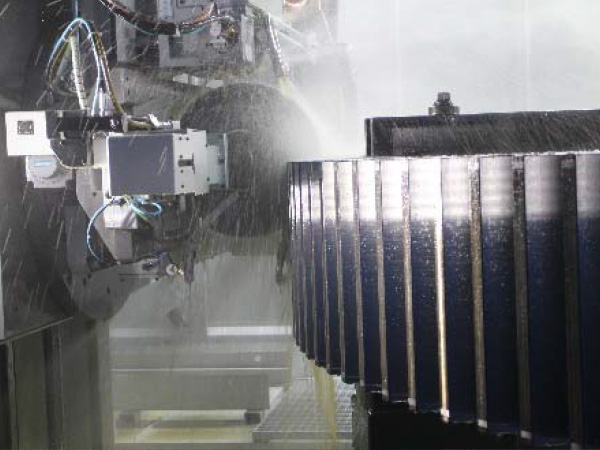

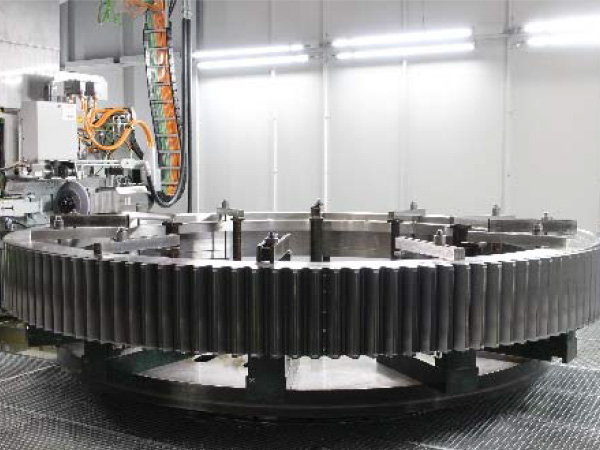

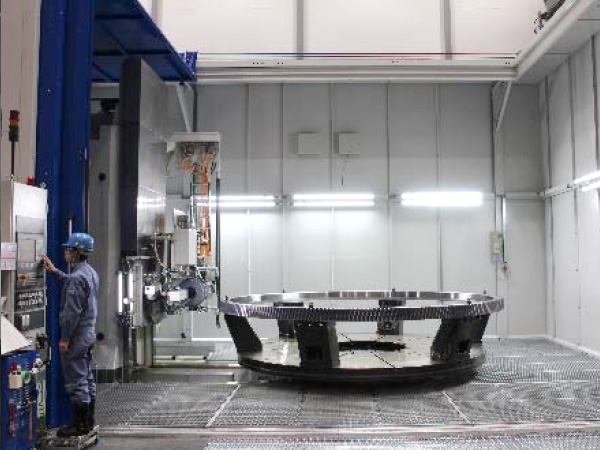

Profile grinding
-
Spur gear 30MP-136T-430W
outside dia.: 4,140mm, 8.3ton
-
Spur gear 30MP-136T-430W
outside dia.: 4,140mm, 8.3ton
-

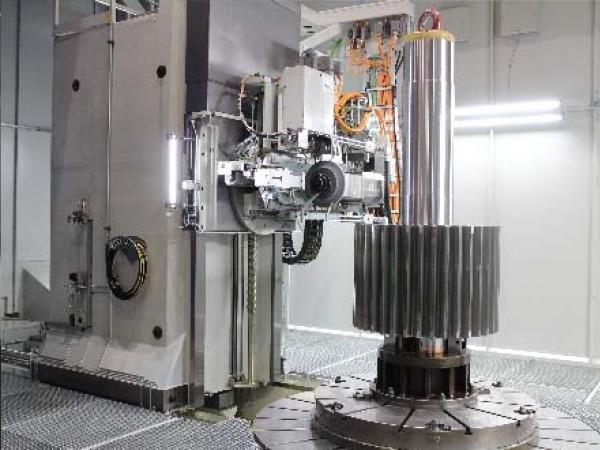

Spur gear 27MP-37T-750W
outside dia.: 1,053mm, Shaft length:3,500mm
-
Helical gear 14MP-272T-140W
outside dia.: 3,970mm 1,600kg
-

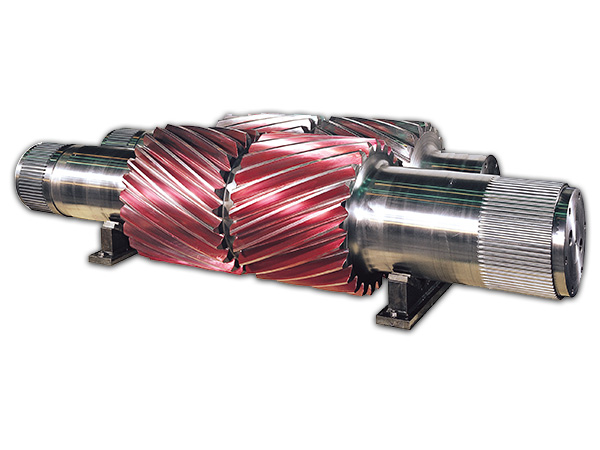

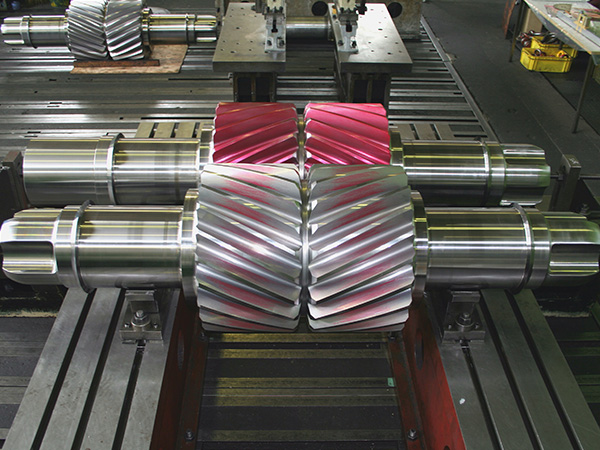

Kamwaltz
-
45MP-28T-950x2(+100)W
SNCM439 Quenched and Tempered 33.4ton
-
45MP-28x28T-950x2(+100)W
SNCM439 Quenched and Tempered
-
32MP-24T-750x2(+80)W
SNC815 Carburizing
-
23MP-22x22T-340x2(+20)W
SCM440 Quenched and Tempered
-

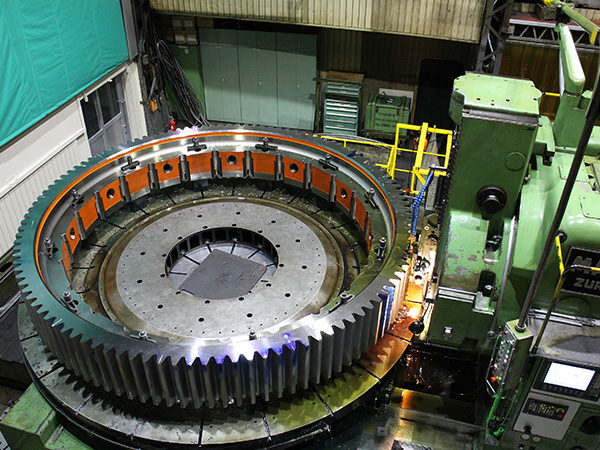

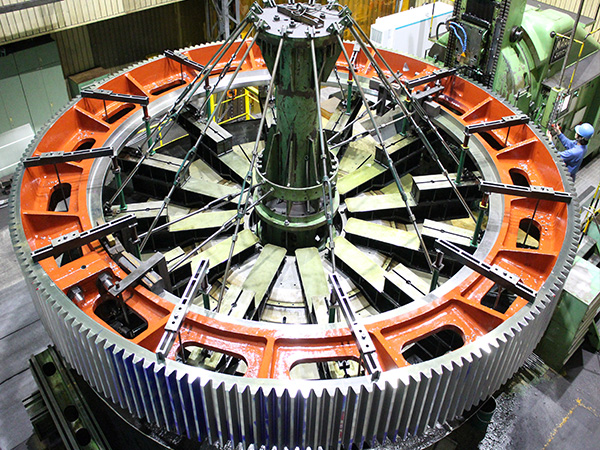

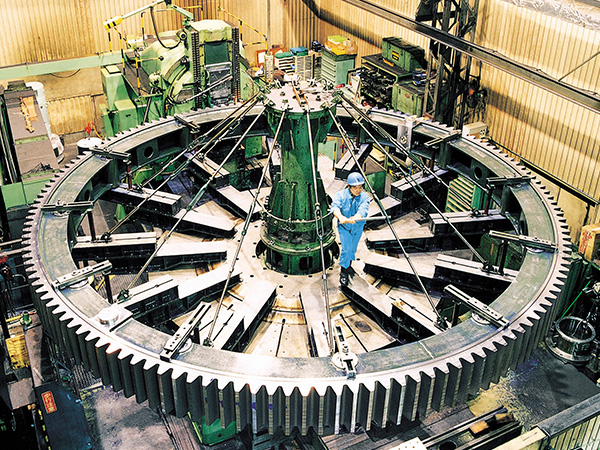

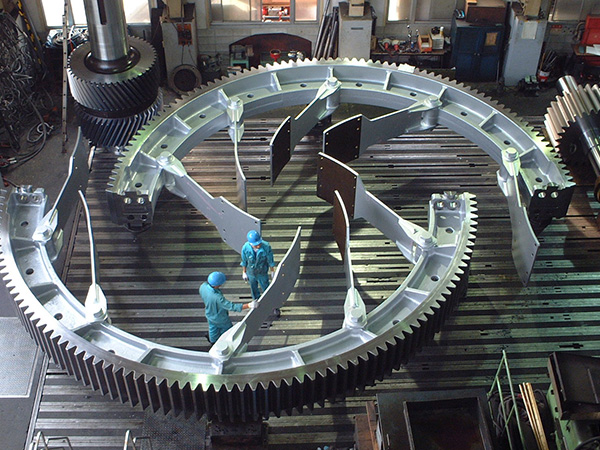

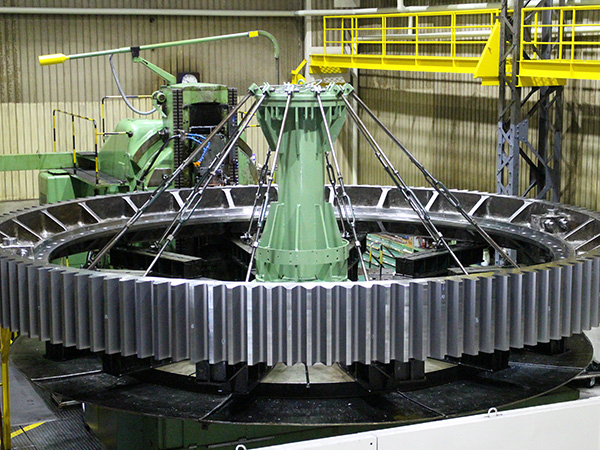

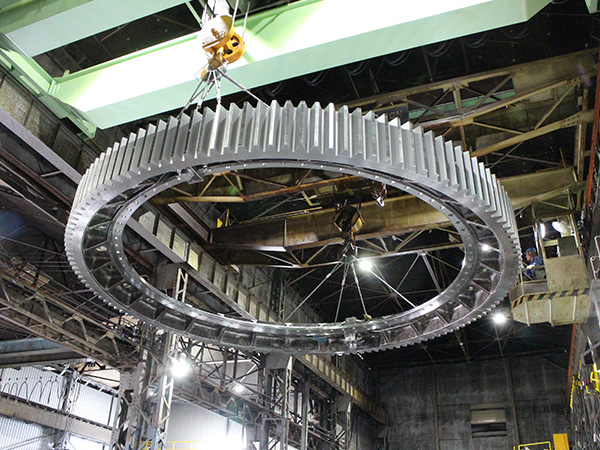

Girth gear
-
Spur gear 50MP-148T-550W
outside dia.: 7,460mm, 22.6ton
-
Spur gear 50MP-136T-640W
outside dia.: 6,900mm 26,290kg
-
Spur gear 50MP-136T-640W
outside dia.: 6,900mm 26,290kg
-
Spur gear 30MP-216T-700W
outside dia.: 6,540mm 23,500kg
-

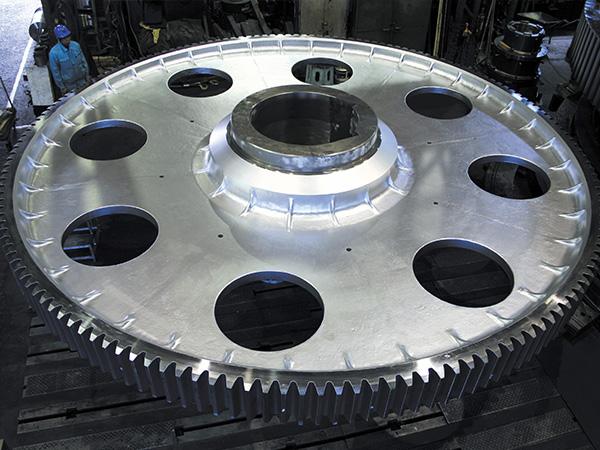

Large gear
-

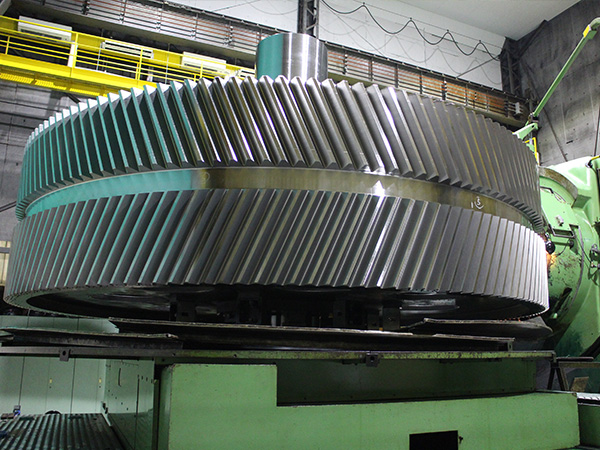

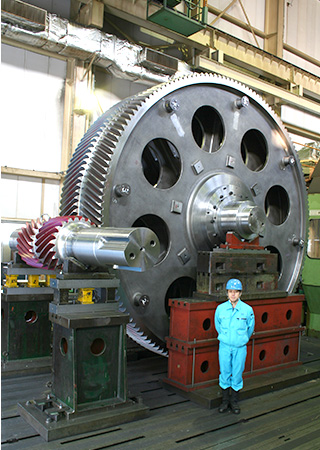

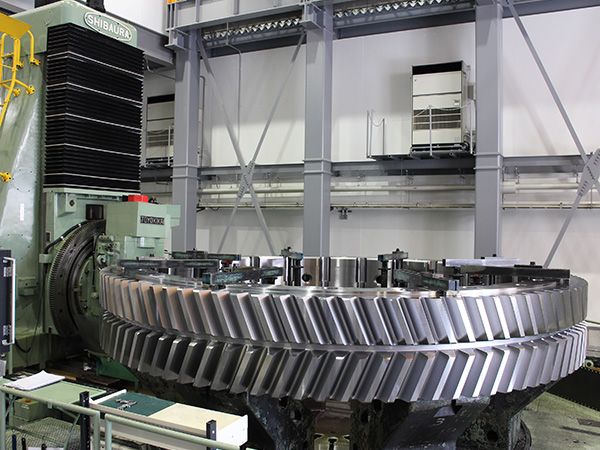

Double helical gear 25MP-157T-490x2(+120)W
outside dia.: 4,314mm, 41.6ton
-
Spur gear 36MP-111T-550W
outside dia.: 4,068mm 17,440kg
-
Double helical gear 40MP-101T-620W
18,324kg
-
Spur gear 40MP-162T-450W
outside dia.: 6,540mm, 44.4ton
-
Tooth contact check
-

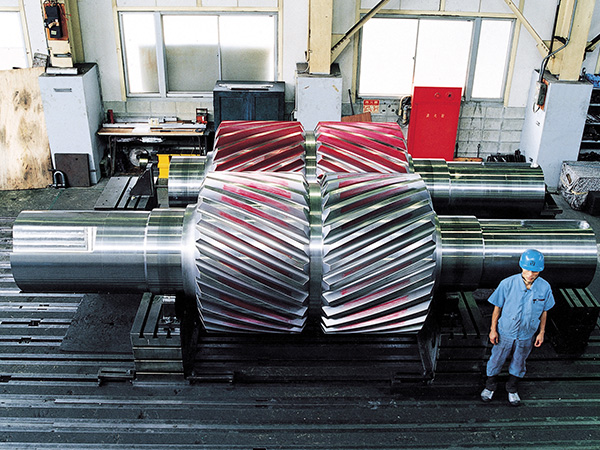

Pinion and gear for rolling mill
32MP-26x131T-610x2(+130)W
-

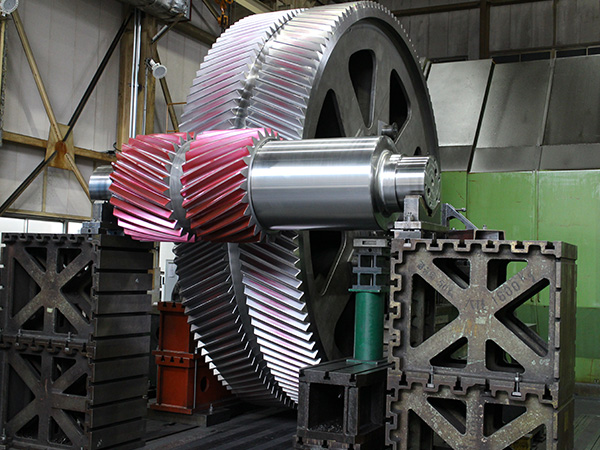

Pinion and gear for hot rolling mill
28MP-23x154T-550x2(+170)W
-

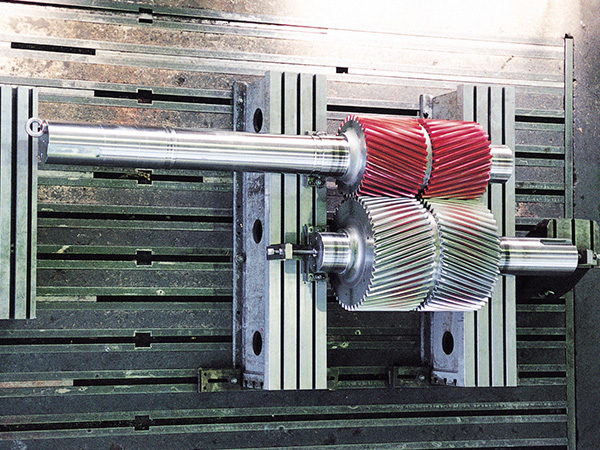

Pinion and gear for cold rolling mill
16MP-34x47T-475x2(+50)W
-
Gear for press(Pre-assembling)
25MP-64x64T-450W
-

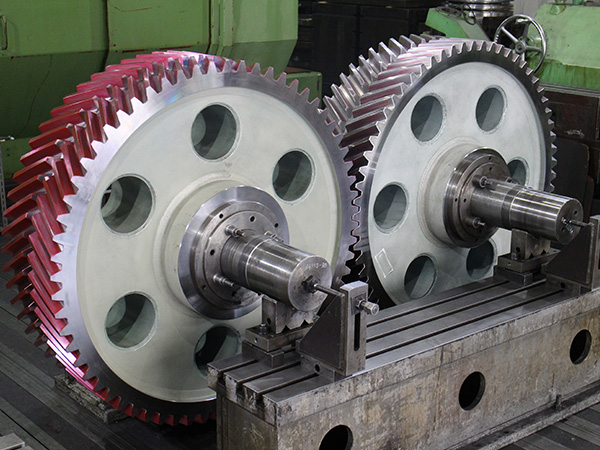

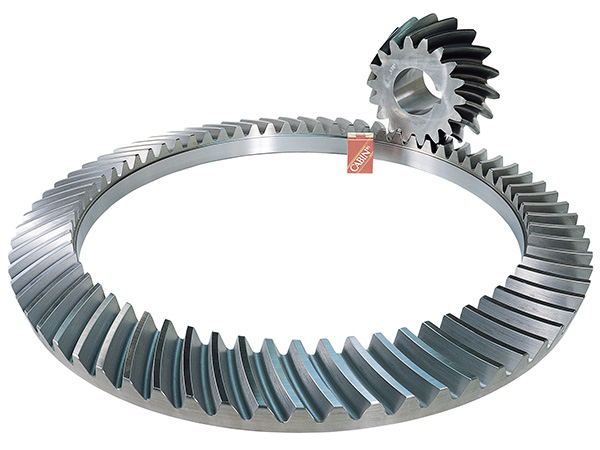

Bevel gear
-

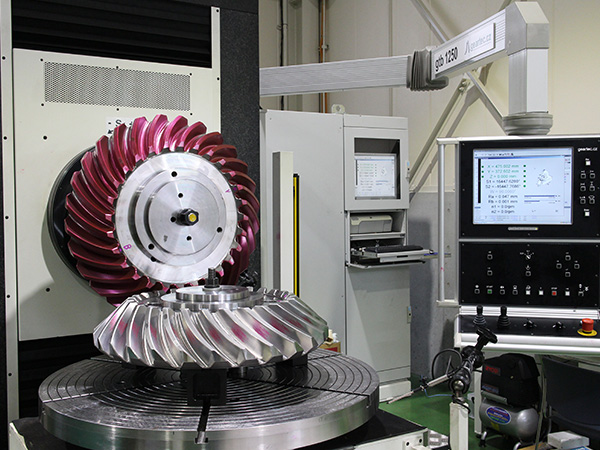

Tooth contact check with gtb1250
25MP-28x28T-165W
-
Pinion and gear for rotary table
1.75DP-18x68T-104.8W
-

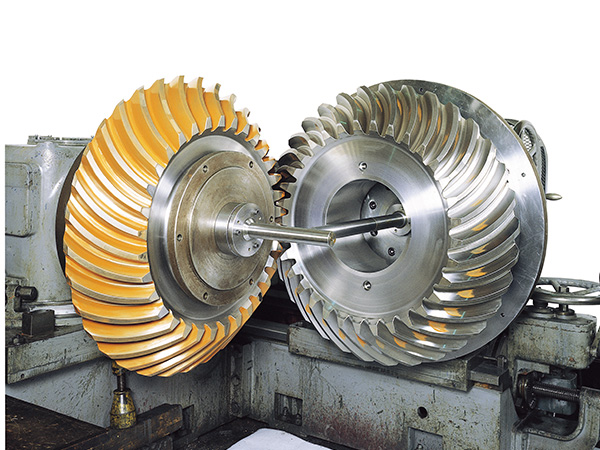

Tooth contact check with TUB-10
30MP-33x33T-230W
-

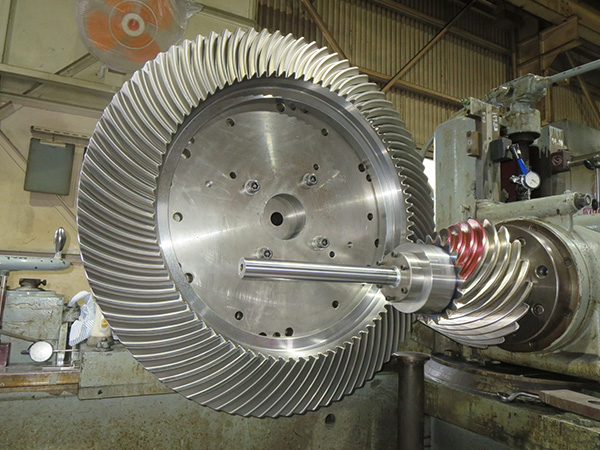

Hypoid pinion and gear
11.43MP-17x60T-116W
-
Others
-

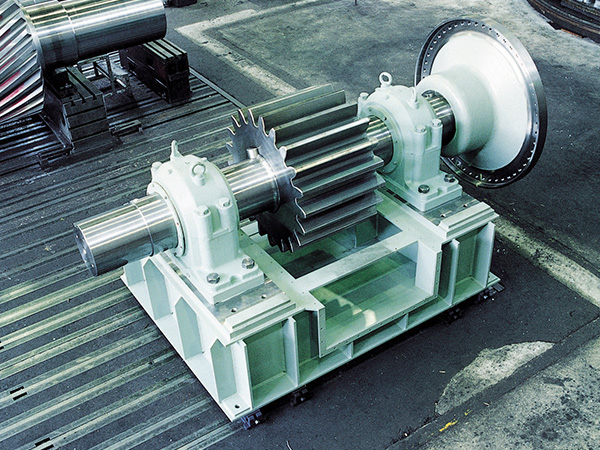

Pinion Shaft
22MP-22-200W x2
-
Girth gear 50MP-154T-750W
Spring plates were set on the girth gear
-
Pinion for kiln
48MP-21T-700W
-

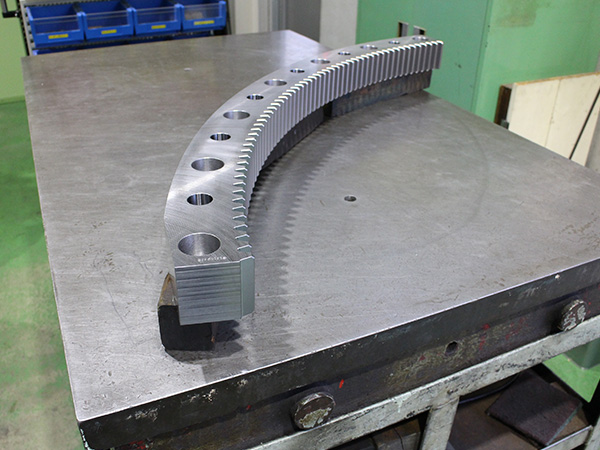

Internal gear segment
6MP-58(296)T-65W
